finned pile weatherstrip

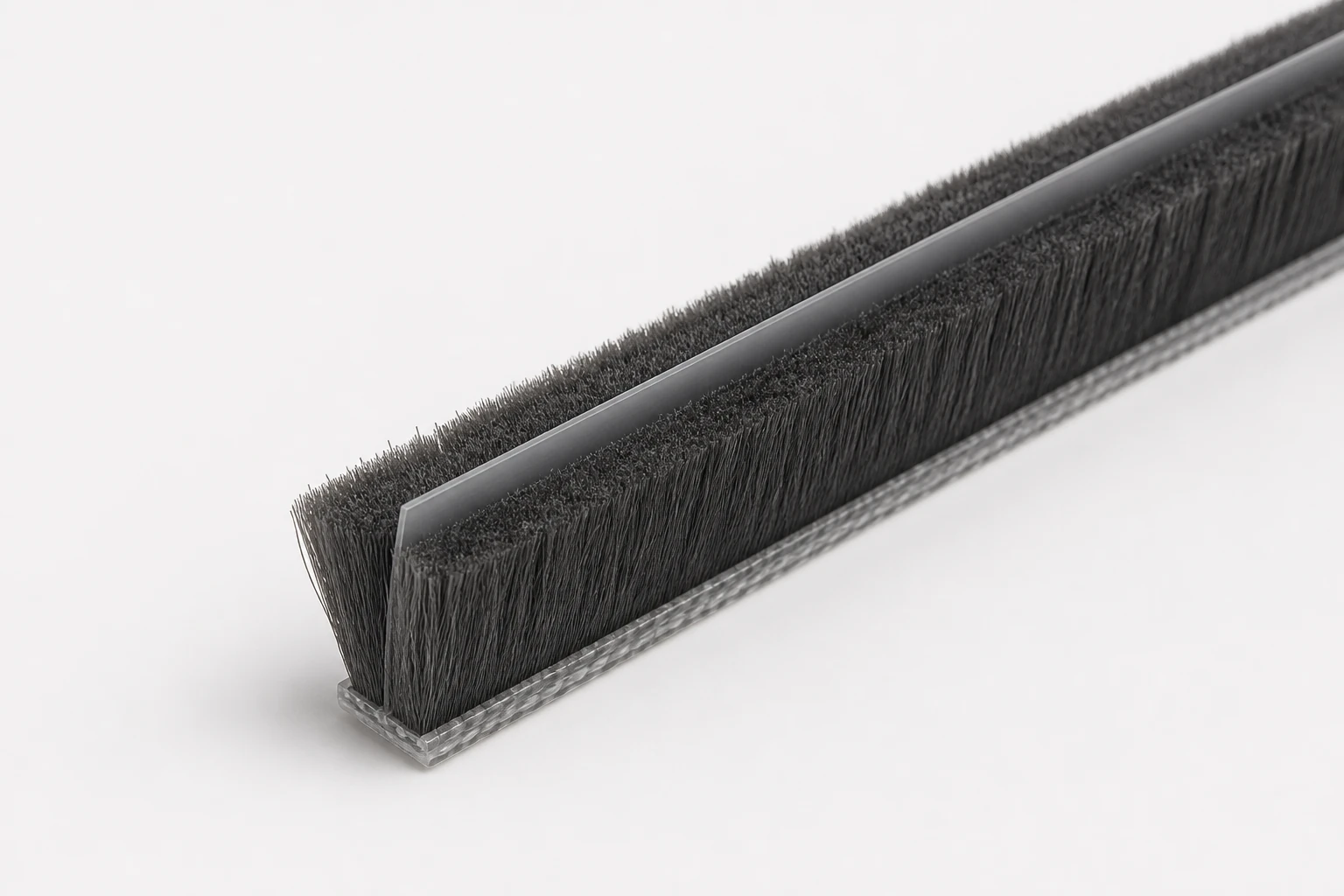

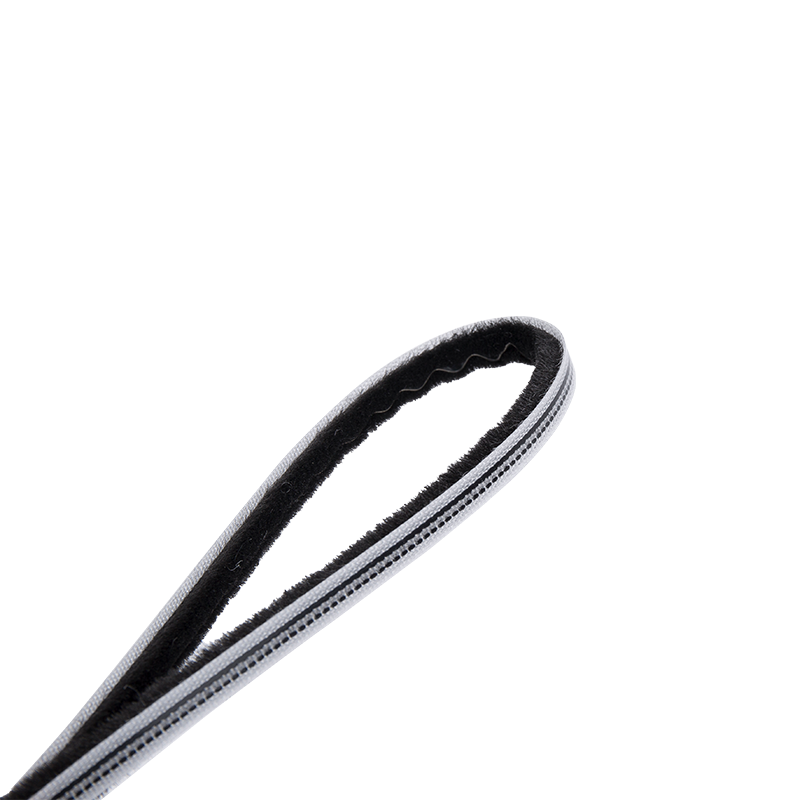

Finned weather strip brush, also sold as fin seal or finned pile weatherstrip, has a thin fin standing in the center of the PP yarn pile. The fin blocks dust, wind and water that pass through ordinary pile, while the pile keeps the sash sliding smoothly.
Ordinary wool pile seals by density alone, so fine dust and wind-driven rain can still work through the yarn. A finned weather strip brush adds a thin fin in the middle of the pile, usually as tall as the pile or slightly lower, which acts as a barrier inside the brush.
Buyers move to finned pile when a regular strip leaves drafts, whistling or dust lines in sliding windows and doors, especially in windy, dusty or rainy regions.
Finned pile is usually written as base width x pile height x fin height in millimeters, for example 7x6x6. Some suppliers write only base width and pile height and add FIN. These combinations appear often in finned pile orders; the final size follows the groove and gap.
| Base about 5 mm | 5x5 with a 5 mm fin |
|---|---|
| Base 6.8 mm | 6.8x5x5, 6.8x6x6, 6.8x7x7 |
| Base 7-7.5 mm | 7x6x6, 7x8x8, 7.5x6x4 |
| Tall pile | 7x13x13 for larger door gaps |
Fin position, fin height and pile density are checked with a sample in the real window before the order is fixed.
| Material | PP yarn pile with a center fin on a woven backing |
|---|---|
| Fin | Film or non-woven fin, position and height confirmed by sample |
| Base width and pile height | Overall reference range: base width 4.8-11 mm, pile height 5-20 mm; final values follow the approved profile or sample. |
| Backing thickness | Approx. 0.8 mm; confirm fit against the profile or approved sample. |
| Yarn options | Regular or siliconed yarn; UV-stabilized yarn on request |
| Colors | Grey, black, brown and custom colors |
| Order plan | Confirmed after specification and sample review |
Finned pile costs more than regular pile and the fin can add some sliding resistance, so use it where the extra barrier is needed rather than everywhere.
Read the finned vs regular wool pile comparison
| Point | Finned pile | Regular pile |
|---|---|---|
| Barrier | Pile plus a center fin | Pile density only |
| Best for | Windy, dusty or rainy exposure; drafts with regular pile | Ordinary gaps and repeat replacement |
| Size notation | Base x pile x fin, e.g. 7x6x6 | Base x pile, e.g. 7x6 |
| Check in sample | Fin height, sliding resistance | Fit, pile recovery |

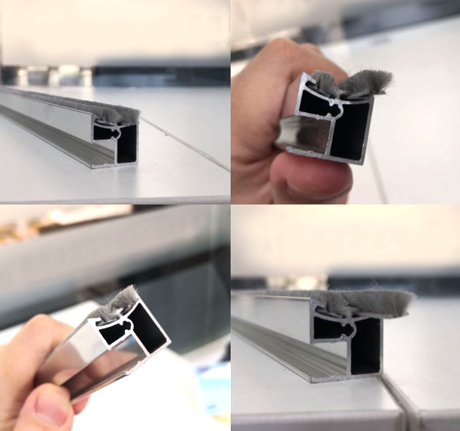

Finned pile is common on the outer track and interlock of aluminum sliding windows, on sliding balcony and patio doors, and in UPVC sliding systems where the profile was designed for a fin seal.
If the gap is ordinary, regular pile may be enough. For smoother sliding, siliconed yarn can be combined with the fin.
Application paths
Application guide
Choosing pile weatherstrip for sliding patio, balcony and wardrobe doors: taller pile sizes, siliconed or finned pile, and how to measure door gaps.
Buyer guides
Buyer guide
Compare siliconed, finned and regular pile weatherstrip for different window and door sealing requirements.
Base width 7 mm, pile height 6 mm and fin height 6 mm.
Yes. Fin seal, finned pile weatherstrip and finned weather strip brush describe the same pile strip with a center fin.
Yes. Siliconed yarn and the fin are specified separately and can be combined.
Send an end photo of the old strip beside a ruler showing base, pile and fin, or a profile drawing. Fin height and position are confirmed by sample.
Fin seal RFQ
Send the size as base x pile x fin, or an end photo of the current strip beside a ruler, plus yarn type, color, roll length, quantity and destination.
